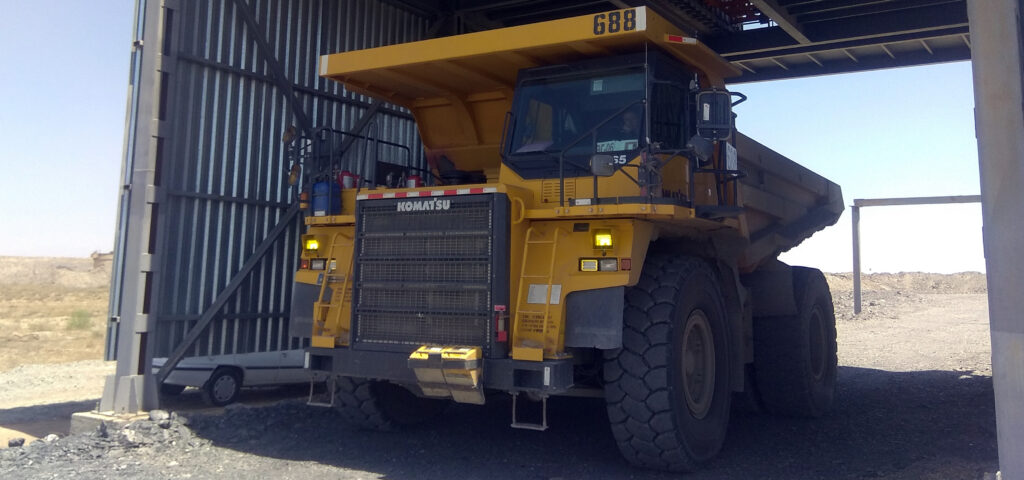

«Integra» systems are intended to build measuring express routes of testing before the X-ray spectrum analysis.
The variety of unify modules use to build on their basis any level of complexity.

Advanced service temperature range modules, a small amount of energy can make use of the harsh operating conditions.

Using various sizes of X-ray generators in these systems and different types of detectors allows for a system for testing ores, almost any type of minerals.



The AC-4

The amplitude coding AC -4 is intended to be used as spectrometric and radiometric systems with moderate energy resolution and increased loads.

The AC-4 was made on the bases of the ISA standard , and can be found in both the PC standard configuration, and more compact industrial electronics format MicroPC format.

Specifications AK-4

1. The number of independent channel coding

4

2. The number of level changes

8

3. Time change

< 2 mks

4. Capacity buffer memory in the channel

256 • 8 bytes

5. Maximum load on the entrance to lapses 10% and the length of the input pulses 2

50 • 103 с-1

6. Analog input pulses :

polarity

the maximum amplitude

length Front

input impedance

input connectors

positive

5 ± 1V

< 0,2 mks

~ 2 kOm

LEMO

7. Digital Inputs and Outputs

levels

Inputs

Outputs

TTL

4

4

8. Interface Card

124х106х24 mm

9. Connector Standard

ISA

10. Temperature range operating

-20оС ¸ +70оС

11. Power Consumption

< 1 Vt

For CA-4 developed driver and libraries allow developers to create sub-program for DOS and Windows XP.

Gas- electroluminescent detection Cluster (GEDC) is 2,5 times better resolution than proportionate gas detectors (Mn Ka -5,9keV).

The GEDC registration area surface approximately 4 times greater than that of silicon detectors for recording X-rays in the energy range.

All these allows for the use of detectors that include express analysis of polymetallic ores.

GEDC specifications

1. Ambient registration keV

2-30

2. The registration of radiation energy 15 keV,%

70

3. Entrance window diameter mm

20

4. Maximum speed accounts, c-1

3*104

5. Energy permission to the Mn Ka - 5.9 keV,%

8

6. Radiation detector resource

Unlimited

The AC-104 equipment

The amplitude coding AC -104 is designed for use in spectrometric and radiometric systems with moderate energy resolution and increased loads. The AC – 104 was made on the bases of the PC-104 standard.

The fee integrated remote control :

  • spectrometric amplifier,
  • discriminator lower level,
  • discriminator top-level,
  • TTL input-output .

AC-104 specifications

1. The number of independent channel coding

1

2. The number of level changes

8

3. Time change

< 2 mks

4. Capacity buffer memory in the channel

256 • 8 bytes

5. Maximum load on the entrance to lapses <10% and the length of the input pulses <2 mks

90 • 103 с-1

6. Analog input pulses :

polarity

the maximum amplitude

Front length

input impedance





positive

2,5 ± 0,1V

< 0,2 mks

~ 2 kOm



7. Digital Inputs and Outputs

levels

inputs

outputs



TTL

4

4

8. Interface Card

90*95 mm

9. Connector standard

ISA PC-104

10. Temperature range operating

-20оС ¸ +70оС

11. Power Consumption

< 1Vt

12. The maximum number of cards serviced by the processor (P4, 1 GHz)

4

For AC-104 developed drivers and libraries allow developers to create sub-program for DOS and Windows XP. Cluster detection БДП-мСИ-13 (rus.) has functional and technical parameters similar to the famous product of "Burevestnik" БДП-13 (rus.). At the same time, through the use of "Integra" innovative solutions installation bloc (the corps) dimensions decreased 3 times, wide operating temperature range is expanded. In addition, enhanced spectrum and the deterioration of the resolution of the maximum bandwidth of detector units without changing the shape. Using БДП-мСИ-13 (rus.) in express testing and sorting ores can significantly enhance the effectiveness and quality of work, compared with the similar products of other firms.

Technical specifications

1. Ambient registration keV2-30
2. Radiation energy registration 15 keV,%90
3. Entrance window area, sm2не менее 5
4. Maximum speed accounts c-1105
